11CrMo9-10 Boiler and Pressure Vessel Hot rolled weldable Steel Plate

11CrMo9-10 Boiler and Pressure Vessel Hot rolled weldable Steel Plate

DIN EN10273 11CrMo9-10 Boiler and Pressure Vessel Hot rolled weldable Steel Plate

DIN EN10273 11CrMo9-10 is a kind of hot rolled steel plate used for boilers and pressure vessels. 11CrMo9-10 grade are used above all for manufacturing boilers, pressure vessels and pipes transporting hot liquids.

Standard: DIN EN10273
Thickness :1.5 mm -300mm
Width :1000mm-4000mm
Length :1000mm-18000mm
MOQ: 1 PC
Delivery time : Promptly ( Stock) or 10-40 days (Production)
MTC: Available
Payment Term : T/T or L/C At sight .

DIN EN10273 11CrMo9-10 chemical composition (%) :

Grade

C

Si ≤

Mn ≤

P ≤

S ≤

Cr ≤

Mo ≤

Ni ≤

11CrMo9-10

0.08~0.15

0.50

0.40~0.80

0.030

0.025

2.00~2.50

0.90~1.10

-

DIN EN10273 11CrMo9-10 Mechanical Property (%) :

Thickness

Yield

Tensilmie

Elongation

mm

Min Mpa

Mpa

Min %

≤ 60

310

520-670

18

60 -100

17

DIN EN10273 11CrMo9-10 steel plate application :

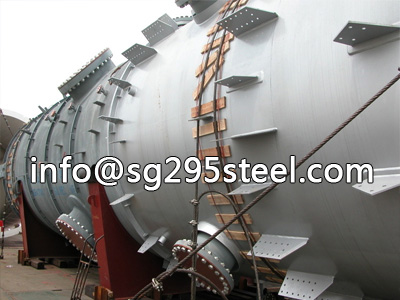

DIN EN10273 11CrMo9-10 pressure vessel steel is widely used in petroleum, chemical industry, power station, boiler, etc, used to make the reactor, heat exchanger, separator, liquefied gas, nuclear reactor pressure vessel and etc.
