SB480 Steel for boilers and pressure vessels

SB480 Steel for boilers and pressure vessels

JIS G3103 SB480 Steel for boilers and pressure vessels

JIS G3103 SB480 Specification :
JIS G3103 SB480 is a kind of steel for boiler using.SB410, SB450, SB480, SB450M, S480M are steel different steel grades of JIS G3103. SB410, SB450, SB480, SB450M, S480M application is to fabricate boilers. The buyer choose different size and steel grade based on the different type boilers. JIS G3103 SB480 is available.

JIS G3103 SB480 Product Attributes :
Standard: JIS G3103
Steel Grade : SB410, SB450, SB480, SB450M, S480M
Dimension range : 5mm -500mm x 1000mm-4000mm x 1000mm-18000mm
MOQ: 1 PC
Delivery time : Promptly ( Stock) or 10-40 days (Production)
Stock : SB480 is Available
MTC: Available
Payment Term : T/T or L/C At sight .

JIS G SB480 chemical composition :

Grade

Thickness mm

C ≤

Si ≤

Mn ≤

P ≤

S ≤

Mo

SB 480

≤25

>25~50

>50

0.31

0.33

0.35

0.15~1.40

1.20

0.030

0.030

-

Note: Heat analysis : Cu, Ni ≤ 0.40; Cr ≤ 0.30; Mo ≤ 0.12; Nb ≤ 0.02; V,Ti ≤ 0.03
Product analysis : Cu, Ni ≤ 0.43; Cr ≤ 0.34; Mo ≤ 0.13; Nb ≤ 0.03; V,Ti ≤ 0.04

JIS G3103 SB480 Main Application :

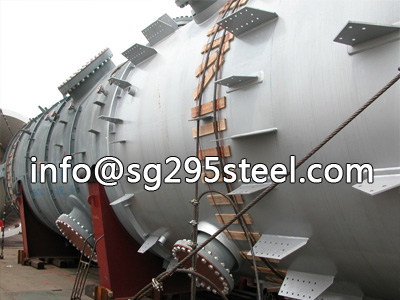

JIS G3103 SB480 Used for petrol, chemical, power station, boiler industry, etc. Making reactor, heat exchanger, separator, spherical tank, oil or gas tank, pressure vessel for nuclear reaction, high pressure water pipe, spiral case, and so on.

JIS G3103 SB480 Tests :
HIC, SSC, SPWHT, Macrostructure, detection of defects, Hardness and DWTT test for pipelines steel plates are also available.
