P235GH steel plate,P235GH steel plate steel

P235GH steel plate

P235GH steel plate main description：
P235GH steel plate is a kind of material for boiler and pressure vessel steel. P235GH steel plates is characterised by a minimum yield strength of 170-230MPa and by good weldability,so P235GH steel is mainly used to for manufacturing boilers, pressure vessels and pipes transporting hot liquids.

P235GH steel plate chemical composition:(%)

Grades	C max	Si max	Mn. max	P max	S max	N max	AL min	Cr max	Cu max	Mo max	Ni max	Nb max	Ti max	V max
P235GH	0.16	0.35	0.60-1.20	0.025	0.015	0.012	0.02	0.3	0.03	0.08	0.3	0.02	0.03	0.02

P235GH steel plate Mechanical properties :

Gade	Thickness (mm)	Yield Strength MPa(min)	Tensile Strength MPa	Elongation % (min)	Impact Energy (KV J) (min)
Gade	Thickness (mm)	Yield Strength MPa(min)	Tensile Strength MPa	Elongation % (min)	-20℃	0℃	20℃
P235GH	≤ 16	235	360 to 480	24	27	34	40
	16＜t ≤40	225	360 to 480	24	27	34	40
	40＜t ≤60	215	360 to 480	24	27	34	40
	6＜t ≤100	200	360 to 480	24	27	34	40
	100＜t ≤150	185	350 to 480	24	27	34	40
	150＜t ≤250	170	350 to 480	24	27	34	40

P235GH steel plate application:

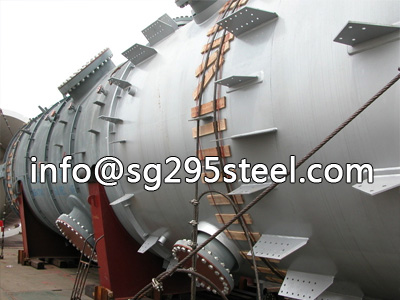

P235GH pressure vessel steel is widely used in petroleum, chemical industry, power station, boiler, etc, used to make the reactor, heat exchanger, separator, liquefied gas, nuclear reactor pressure vessel, boiler steam drum steam, liquefied petroleum, hydropower station, high pressure pipe, spiral case and other equipment and components.
