A387 Grade 9 steel plate
A387 Grade 9 is American ASTM standard steel plate, ASTM A387 / A387M pressure vessel with chrome molybdenum alloy steel plate, this standard applies to work under high temperature welding boiler and pressure vessel chromium molybdenum alloy steel plate.
Standard: ASTM A-387/A-387M
Dimension range :1.5mm -260mm x 1000mm-4000mm x 1000mm-18000mm
A387 Grade 9 steel plate/sheet Mechanical Properties :
|
Mechanical Properties |
||||||
|
Grade |
Thickness |
Yield |
Tensile Strength |
Elongation |
Charpy V Notch Impact Test |
|
|
Degree |
Min Value |
|||||
|
A387 Grade 9 |
mm |
Min Mpa |
Mpa |
Min % |
- |
J |
|
5≤t≤65 |
205 |
415-585 |
18 |
- |
||
|
65≤t≤150 |
- |
- |
- |
|
- |
|
|
Note: Impact energy for impact test is on longitudinal |
||||||
A387 Grade 9 Boiler steel plate Chemical Composition :
|
Chemical Composition |
|||||||
|
Grade |
The Element Max (%) |
||||||
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
|
|
A387 Grade 9 |
0.15 |
1.05 |
0.25-0.66 |
0.030 |
0.030 |
7.90-10.10 |
0.85-1.10 |
|
B |
Zr |
|
|
|
|
|
|
|
- |
- |
|
|
|
|
|
|
Delivery Status : Annealing, Normalizing + tempering
ASTM A387 Grade 9 steel sheet application :

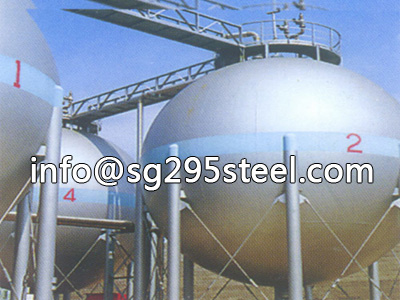

ASTM A387 Grade 9 steel plate is mainly used in oil, chemical, power station, boiler and other industries, for the production reactor, heat exchanger, separator, spherical tank, oil tank, liquefied gas tank, nuclear reactor pressure shell, boiler drum, Liquefied petroleum gas cylinders, high-pressure water pipes, water turbines and other equipment and components.
