ASTM A515 GR65 pressure vessel steel
ASTM A515 GR65 is a kind of steel plates material used to fabric middle or high temperature pressure vessels. ASTM A515 has three levels : A515 Grade 415, A515 Grade 450, A515 Grade 485. A515 GR 65 under the standard of ASTM A515/A515M is for high temperature pressure vessels.
A515 GR 65 steel plate with good impact resistance, low temperature deformation, good welding performance, good anti-fatigue performance, good anti-crack properties, micro-alloying, high purity.
Standard: ASTM A515/A515M
Dimension range : 3mm -500mm * 1000mm-4000mm * 1000mm-18000mm
A515 GR65 Boiler steel plate Chemical Composition
|
Chemical Composition |
|||||||
|
Grade |
The Element Max (%) |
||||||
|
C |
Mn |
P |
S |
Si |
Cr |
Mo |
|
|
A515Gr.65 |
0.28-0.33 |
0.98 |
0.035 |
0.035 |
0.13-0.45 |
- |
- |
|
Zr |
B |
V |
Ti |
Cu |
Ni |
|
|
|
- |
- |
- |
- |
- |
- |
|
|
Delivery Status : Rolling, normalizing
A515 GR65 steel plate/sheet Mechanical Properties :
|
Mechanical Properties |
||||||
|
Grade |
Thickness |
Yield |
Tensile Strength |
Elongation |
Charpy V Notch Impact Test |
|
|
Degree |
Min Value |
|||||
|
A515Gr.65 |
mm |
Min Mpa |
Mpa |
Min % |
- |
J |
|
5≤t≤50 |
240 |
65-585 |
23 |
- |
||
|
50≤t≤200 |
240 |
65-585 |
19 |
|
||
|
Note: Impact energy for impact test is on longitudinal |
||||||
ASTM A515 GR65 structural steel plate application :

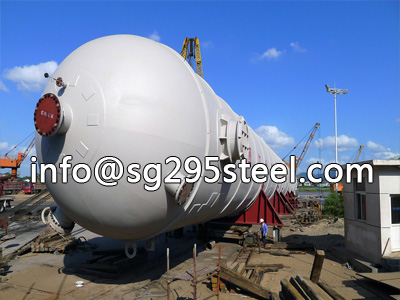

A515 GR65 steel is widely used in petroleum, chemical, power station, boiler and other industries, for the production reactor, heat exchanger, separator, spherical tank, gas tank, liquefied gas tank, nuclear reactor pressure shell, boiler drum, liquefaction Oil gas cylinders, high-pressure water pipe hydropower station, water wheel and other equipment and components.
