P235GH steel plate chemical composition

P235GH steel plate for pressure vessel chemical composition and mechanical property

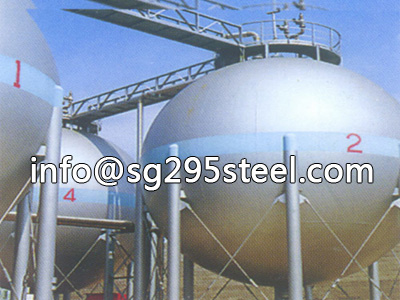

P235GH steel plate is a kind of material for boiler and pressure vessel steel. P235GH steel plates is characterized by a minimum yield strength of 170-230MPa and by good weldability,so P235GH steel is mainly used to for manufacturing boilers, pressure vessels and pipes transporting hot liquids.

Standard:DIN EN 10028-2
Steel grade: P235GH
Dimension range: 1.5mm -12.70mm x 900mm-1880mm

MOQ: 1 PC
Product type: Steel plate/sheets/pipe/tube
Delivery time: Promptly (Stock) or 10-40 days (Production)

Stock: Available
MTC: Available
Payment Term: T/T or L/C At sight

P235GH steel plate chemical composition:(%)

Grades	C max	Si max	Mn. max	P max	S max	N max	AL min	Cr max	Cu max	Mo max	Ni max	Nb max	Ti max	V max
P235GH	0.16	0.35	0.60-1.20	0.025	0.015	0.012	0.02	0.3	0.03	0.08	0.3	0.02	0.03	0.02

P235GH steel plate Mechanical properties :

Gade	Thickness (mm)	Yield Strength MPa(min)	Tensile Strength MPa	Elongation % (min)	Impact Energy (KV J) (min)
Gade	Thickness (mm)	Yield Strength MPa(min)	Tensile Strength MPa	Elongation % (min)	-20℃	0℃	20℃
P235GH	≤ 16	235	360 to 480	24	27	34	40
	16＜t ≤40	225	360 to 480	24	27	34	40
	40＜t ≤60	215	360 to 480	24	27	34	40
	6＜t ≤100	200	360 to 480	24	27	34	40
	100＜t ≤150	185	350 to 480	24	27	34	40
	150＜t ≤250	170	350 to 480	24	27	34	40

Shanghai Royal Industry is a professional steel plate for pressure vessels stockist and supplier. We can supply steel plate for pressure vessels if you have any need of P235GH steel plates, please do not hesitate to contact us. We will do service for you at any time.
