P460QH steel plates
P460QH implementation of the standard EN10028, it belongs to flat steel products for pressure, normalized welding of fine grain steel.
Standard : EN 10028
Dimension range :1.5 mm -300mm x 1000mm-4000mm x 1000mm-18000mm
P460QH steel plate/sheet Mechanical Properties :
|
Mechanical Properties |
||||||
| Grade | Thickness |
Yield Strength |
Tensile Strength | Elongation | Charpy V Notch Impact Test | |
| Degree | Min Value | |||||
| P460QH | mm | Min Mpa | Mpa | Min % | ℃ | J |
| 5≤t≤16 | 460 | 570-720 | 17 | -20 | 47 | |
| 70﹤t≤100 | 400 | 540-710 | 16 | 47 | ||
| 100﹤t≤150 | 380 | 520-690 | 16 | 47 | ||
| Note: Impact energy for impact test is on longitudinal | ||||||
EN 10028 P460QH Boiler steel plate Chemical Composition :
|
Chemical Composition |
|||||||
| Grade | The Element Max (%) | ||||||
| C | Si | Mn | P | S | Al min | N | |
| P460QH | 0.20 | 0.60 | 1.0-1.70 | 0.030 | 0.020 | 0.025 | |
| Cr | Cu | Mo | Nb | Ni | Ti | V | |
| 0.30 | 0.70 | 0.10 | 0.005 | 0.80 | 0.03 | 0.20 | |
Delivery Status : Hot rolling, controlled rolling or normalizing / AR, CR or N.

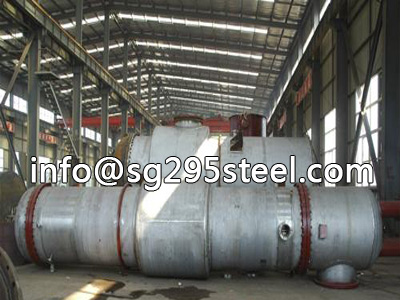

EN 10028 P460QH pressure vessel steel plate application:
P460QH steel plate used in oil, chemical, power plants, boilers and other industries, for the production reactor, heat exchanger, separator, spherical tank, oil tank, , High-pressure water pipe hydropower station, turbine volute and other equipment and components.
