A516 Gr415 pressure vessel steel
A516 Gr.415 steel plate belongs to the middle and low temperature pressure vessel carbon steel plate, good impact resistance, small temperature deformation, good welding performance, good fatigue resistance, anti-layered crack performance.
Standard : ASTM A516
Dimension range : 5-4150mm*1500-4200mm*5800-141500mm
A516 Gr415 steel plate/sheet Chemical Composition :
|
Chemical Composition |
|||||||
|
Grade |
The Element Max (%) |
||||||
|
C |
Si |
Mn |
P |
S |
N |
Al |
|
|
A516 Gr.415 |
0.21-0.27 |
0.13-0.45 |
0.79-1.30 |
0.035 |
0.035 |
- |
- |
ASTM A516 Gr415 Boiler steel plate Mechanical Properties :
|
Mechanical Properties |
||||||
|
Grade |
Thickness |
Yield |
Tensile Strength |
Elongation |
Charpy V Notch Impact Test |
|
|
Degree |
Min Value |
|||||
|
A516 Gr.415 |
mm |
Min Mpa |
Mpa |
Min % |
- |
J |
|
5≤t≤40 |
220 |
415-550 |
25% |
- |
||
|
40≤t≤100 |
220 |
415-550 |
21% |
|
|
|
|
Note: Impact energy for impact test is on longitudinal |
||||||
Delivery Status : Hot rolling, controlled rolling, normalizing, annealing and tempering
A516 Gr415 pressure vessel steel Application :

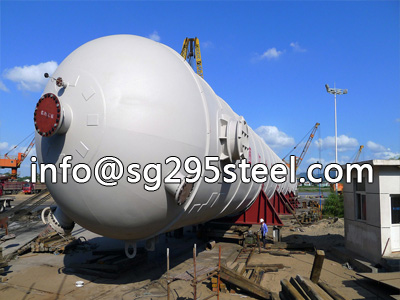

A516 Gr415 pressure vessel steel widely used in petroleum, chemical, power plants, boilers and other industries for the production of reactors, heat exchangers, separators, tank, no tank, gas cans, nuclear reactor pressure vessel, boiler drum, liquefied petroleum gas cylinders, high pressure water station, water wheels and other equipment and components volute.
