ASTM A516 Grade 415 Carbon Steel Plate

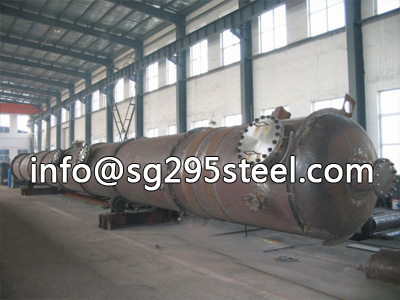

Product:This specification ASTM A516 Grade 415 covers carbon steel plates intended primarily for use in welded pressure vessels where improved notch toughness is important. ASTM A516 allows for four different strength levels. The most common is Grade 70.

Key words:A516 Grade 415,ASTM A516 Grade 415, A516 Grade 415 Carbon Steel Plate,ASTM A516 Grade 415 Carbon Steel Plate,ASTM A516 Grade 415 Carbon Steel Plate for pressure vessels.

ASTM A516 Grade 415 steel equivalent material:

Chinese

Japanese

American

Germany

GB 20g

JIS G3118/SGV410

ASTM A414 Grade E

DIN 1715/Material NO.1.0425

ASTM A516 Grade 415 steel chemical composition : %

Compostion			A516 Grade 415(415)
C ≤ ①	≤ 12.5mm		0.21
	＞ 12.5mm ~ 50mm		0.23
	＞ 50mm ~ 100mm		0.25
	＞ 100mm ~ 200mm		0.27
	＞ 200mm		0.27
Mn	≤12.5mm②	Heat analyse	0.60~0.90
		Product analyse	0.55~0.98
	12.5mm~50mm	Heat analyse	0.85~1.20
		Product analyse	0.79~1.30
P ≤ ①			0.035
S ≤ ①			0.035
Si	Heat analyse		0.15~0.40
	Product analyse		0.13~0.45

① means be suitable for both heat analyse and product analyse
②ASTM A516 GR60, when the steel plates thickness is not more than 12.5mm, the Mn composition heat analyse can be 0.85% ~ 1.20%, the product analyse can be 0.79% ~ 1.30% .

ASTM A516 Grade 415 Mechanical Properties :

Grade	Tensile KSI	Yield KSI Min	Elongation Min %
			8”	2”
60	60-80	32	21	25

Shanghai Royal Industry is a professional ASTM A516 and ASTM A516 steel stockist and supplier. We can supply different product type and grades of ASTM A516 . If you have any need of ASTM A516 steel please do not hesitate to contact us .
