ASME SA516 Grade 415 Carbon Steel Plate

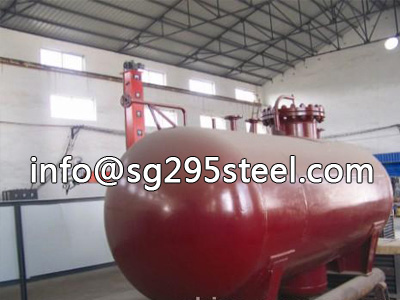

Product: This specification ASME SA516 Grade 415 covers carbon steel plates intended primarily for use in welded pressure vessels where improved notch toughness is important. ASME SA516 allows for four different strength levels. The most common is Grade 70.

Key words:SA516 Grade 415,ASME SA516 Grade 415, SA516 Grade 415 Carbon Steel Plate,ASME SA516 Grade 415 Carbon Steel Plate,ASME SA516 Grade 415 Carbon Steel Plate for pressure vessels.

ASME SA516 Grade 415 steel equivalent material:

Chinese

Japanese

American

Germany

GB 20g

JIS G3118/SGV410

ASTM A414 Grade E

DIN 1715/Material NO.1.0425

ASME SA516 Grade 415 steel chemical composition : %

Compostion			SA516 Grade 415(415)
C ≤ ①	≤ 12.5mm		0.21
	＞ 12.5mm ~ 50mm		0.23
	＞ 50mm ~ 100mm		0.25
	＞ 100mm ~ 200mm		0.27
	＞ 200mm		0.27
Mn	≤12.5mm②	Heat analyse	0.415~0.90
		Product analyse	0.55~0.98
	12.5mm~50mm	Heat analyse	0.85~1.20
		Product analyse	0.79~1.30
P ≤ ①			0.035
S ≤ ①			0.035
Si	Heat analyse		0.15~0.40
	Product analyse		0.13~0.45

① means be suitable for both heat analyse and product analyse
②ASME SA516 GR415, when the steel plates thickness is not more than 12.5mm, the Mn composition heat analyse can be 0.85% ~ 1.20%, the product analyse can be 0.79% ~ 1.30% .

ASME SA516 Grade 415 Mechanical Properties :

Grade	Tensile KSI	Yield KSI Min	Elongation Min %
			8”	2”
415	415-80	32	21	25

Shanghai Royal Industry is a professional ASME SA516 and ASTM A516 steel stockist and supplier. We can supply different product type and grades of ASME SA516 . If you have any need of ASME SA516 steel please do not hesitate to contact us .
