ASTM A302 Grade A steel plate for Pressure Vessel Plates

ASTM A302 Grade A steel plate for Pressure Vessel Plates

Product: ASTM A302 Grade A steel plate grade specification covers molybdenum alloy, intended particularly of welded boilers and others pressure vessels steel plate in A302 Gr A, A302 Gr B , A 302 Gr C and A302 Gr D.

Key words: A302 Grade A,ASTM A302 Grade A,A302 Grade A steel plate,ASTM A302 Grade A steel plate for pressure vessel plates.A302 Grade A,A302 Grade A steel plate,A302 Grade A steel plate for Pressure Vessel Plates

ASTM A302 Grade A equivalent material :

JIS G3119 SBV1A

UK Gr.27

UK Gr.31

ASTM A302 Grade A steel Chemical Composition (% ):

Composition

Type

Thickness(mm)

A

C ≤

Heat analyse

≤25

0.20



Product analyse

50~100

0.23





>100

0.25

Mn ≤

Heat analyse

-

0.95~0.13



Product analyse

-

0.87~1.41

P ≤

Heat analyse

-

0.035

S ≤

Product analyse

-

0.040

Si

Heat analyse

-

0.15~0.40



Product analyse

-

0.13~0.45

Mo

Heat analyse

-

0.45~0.60



Product analyse

-

0.41~0.64

ASTM A302 Grade A steel Mechanical Properties:

Grade

ASTM A302 Grade A Mechanical Property

Thickness

Yield

Tensile

Elongation

A302 Grade A

mm

Min Mpa

Mpa

Min %

6-50

310

515-655

19%

50-200

310

515-655

15%

ASTM A302 Grade A steel chief application:

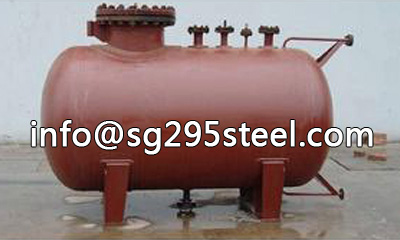

ASTM A302 Grade A pressure vessel steel plate is widely used in petroleum, chemical industry, power station, boiler, etc, used to make the reactor, heat exchanger, separator, spherical tank, liquefied gas, nuclear reactor pressure vessel, boiler steam drum steam, liquefied petroleum, hydropower station, high pressure pipe.

We also have a high quality logistics team who make sure the fast delivery time and shipment. Anyway, if you want to find hot rolled and cold rolled A302 Gr A steel supplier, hot rolled and cold rolled A302 Gr A steel manufacturer, hot rolled and cold rolled A302 Gr A steel exporter, please contact Shanghai Royal Industry’s Ales team. We will give you the hot rolled and cold rolled A302 Gr A competitive price, hot rolled and cold rolled A302 Gr A good quality and best service from us.

Related link :A302 Grade B,A302 Grade C,A302 Grade D,ASTM A302
