ASTM A302 Grade C steel plate for Pressure Vessel Plates

ASTM A302 Grade C steel plate for Pressure Vessel Plates

Product:ASTM A302 Grade C steel plate grade specification covers molybdenum alloy, intended particularly of welded boilers and others pressure vessels steel plate in A302 Gr A, A302 Grade B , A 302 Gr C and A 302 Gr D.

Key words: A302 Grade C,ASTM A302 Grade C,A302 Grade C steel plate,ASTM A302 Grade C steel plate for pressure vessel plates.A302 Grade C,A302 Grade C steel plate,ASTM A302 Grade C steel plate for Pressure Vessel Plates

ASTM A302 Grade C steel Chemical Composition (% ):

Composition

Type

Thickness

(mm)

C

C ≤

Heat analyse

≤25

0.20



Product analyse

50~100

0.23





>100

0.25

Mn ≤

Heat analyse

-

1.15~1.50



Product analyse

-

1.07~1.62

P ≤

Heat analyse

-

0.035

S ≤

Product analyse

-

0.035

Si

Heat analyse

-

0.15~0.40



Product analyse

-

0.13~0.45

Mo

Heat analyse

-

0.45~0.60



Product analyse

-

0.41~0.64

Ni

Heat analyse

-

0.40~0.70



Product analyse

-

0.37~0.73

ASTM A302 Grade C steel Mechanical Properties:

Grade

Tensile strength

kis [MPa]

Yield strength

min, kis [MPa]

Elongation in 8 in. [200 mm], min, %

Elongation in 2 in. [50 mm], min, %

A302 Grade C

80-100 [550-690]

50 [345]

17

20

ASTM A302 Grade C steel chief application:

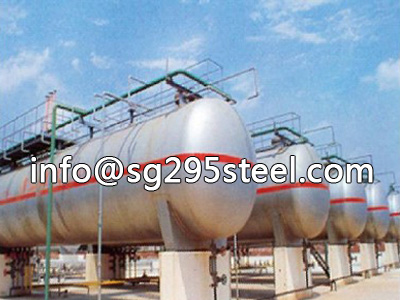

ASTM A302 Grade C pressure vessel steel plate is widely used in petroleum, chemical industry, power station, boiler, etc, used to make the reactor, heat exchanger, separator, spherical tank, liquefied gas, nuclear reactor pressure vessel, boiler steam drum steam, liquefied petroleum, hydropower station, high pressure pipe.

We also have a high quality logistics team who make sure the fast delivery time and shipment. Anyway, if you want to find hot rolled and cold rolled A302 Grade C steel supplier, hot rolled and cold rolled A302 Grade C steel manufacturer, hot rolled and cold rolled A302 Grade C steel exporter, please contact Shanghai Royal Industry’s Ales team. We will give you the hot rolled and cold rolled A302 Grade C competitive price, hot rolled and cold rolled A302 Grade C good quality and best service from us

Related link :A302 Grade A,A302 Grade B,A302 Grade D,ASTM A302
