ASME SA-533/SA-533M Q&T Mn-Mo and Mn-Mo-Ni alloy steel plates for pressure vessels

ASME SA-533/SA-533M

Standard: ASME SA-533/SA-533M
Steel Grade : SA533 Gr A, SA533 Gr B, SA533 Gr C, SA533 Gr D
Dimension range :3mm -260mm x 1000mm-4000mm x 1000mm-18000mm
MOQ: 1 PC
Delivery time : 10-40 days (Production)
Stock : Unvailable
MTC: Available
Payment Term : T/T or L/C At sight.
Latest price:

Specification :

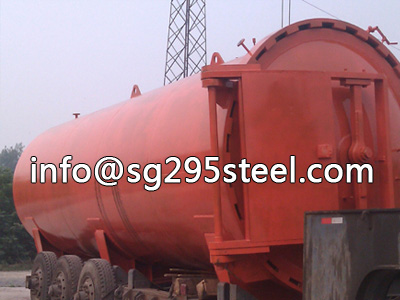

SA533 in the standard SA-533/SA-533M is a kind of Mn-Mo and Mn-Mo-Ni alloy steel plates material used to fabric high temperature pressure vessels. Just because A533 with the special Manganese , Molybdenum , and Manganese, Molybdenum, Nickel chemical composition, A533 has the right property to be used in high temperature pressure vessel.
SA533 is also a Quenching + Tempering steel material. SA533 have four types A/B/C/D. The following is their chemical composition:

ASTM SA-533/SA-533M SA533 steel chemical composition :%

Composition		Grade A	Grade B	Grade C	Grade D
C ≤ ①		0.25	0.25	0.25	0.25
Mn	Heat analyse	1.15~1.50	1.15~1.50	1.15~1.50	1.15~1.50
Mn	Product analyse	1.07~1.62	1.07~1.62	1.07~1.62	1.07~1.62
P ≤ ①		0.035	0.035	0.035	0.035
S ≤ ①		0.035	0.035	0.035	0.035
Si	Heat analyse	0.15~0.40	0.15~0.40	0.15~0.40	0.15~0.40
Si	Product analyse	0.13~0.45	0.13~0.45	0.13~0.45	0.13~0.45
Ni	Heat analyse	-	0.40~0.70	0.70~1.00	0.20~0.40
Ni	Product analyse	-	0.37~0.73	0.67~1.03	0.17~0.43
Mo	Heat analyse	0.45~0.60	0.45~0.60	0.45~0.60	0.45~0.60
Mo	Product analyse	0.41~0.64	0.41~0.64	0.41~0.64	0.41~0.64

Note : ① Be suitable for both heat analyse and product analyse.
