Home > ASTM > ASTM A516 Grade 65 Carbon Steel Plate

ASTM A516 Grade 65 Carbon Steel Plate

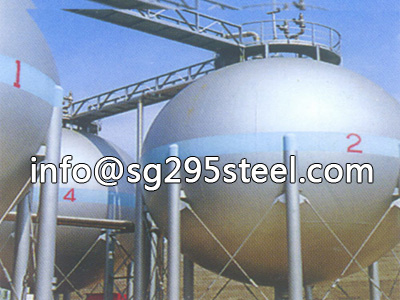

Product:This specification ASTM A516 Grade 65 covers carbon steel plates intended primarily for use in welded pressure vessels where improved notch toughness is important. ASTM A516 allows for four different strength levels. The most common is Grade 70.

Key words:A516 Grade 65,ASTM A516 Grade 65, A516 Grade 65 Carbon Steel Plate,ASTM A516 Grade 65 Carbon Steel Plate,ASTM A516 Grade 65 Carbon Steel Plate for pressure vessels.

ASTM A516 Grade 65 steel equivalent material:

Chinese

Japanese

American

Germany

GB 22g

JIS G3118

SGV450

ASTM A414

Grade E

DIN 1715

Material NO.1.0425

ASTM A516 Grade 65 steel chemical composition : %

Compostion			A516 Grade 65(450)
C ≤ ①	≤ 12.5mm		0.24
	＞ 12.5mm ~ 50mm		0.26
	＞ 50mm ~ 100mm		0.28
	＞ 100mm ~ 200mm		0.29
	＞ 200mm		0.29
Mn	≤12.5mm	Heat analyse	0.85~1.20
		Product analyse	0.79~1.30
	12.5mm~50mm	Heat analyse	0.85~1.20
		Product analyse	0.79~1.30
P ≤ ①			0.035
S ≤ ①			0.035
Si	Heat analyse		0.15~0.40
	Product analyse		0.13~0.45

① means be suitable for both heat analyse and product analyse

ASTM A516 Grade 65 Mechanical Properties :

Grade	Tensile KSI	Yield KSI Min	Elongation Min %
			8”	2”
65	65-85	35	19	23

Shanghai Royal Industry is a professional ASTM A516 and ASTM A516 steel stockist and supplier. We can supply different product type and grades of ASTM A516 . If you have any need of ASTM A516 steel please do not hesitate to contact us .
